The PC-648R is a ceiling mount speaker with a resin panel and speaker frame. It features a spring clamp mechanism for easy speaker mounting to the ceiling. The input impedance can be easily changed by adjusting the tap position of the transformer.
- Special design for thin ceiling
- Spring clamp mechanism for easy speaker mounting to the ceiling
Specification
| Frequency response | 100 Hz - 18 kHz |
| Sensitivity (1 W, 1 m) | 90 dB |
| Speaker component | 12 cm cone-type |
| Rated input (high impedance) | 6 W, 3 W |
| Tappings | 6 / 3 / 1 W (100 V), 3 / 1.5 / 0.5 W (70 V) |
| Mounting Hole | 145 mm |
| Dimensions. | 168 x 77 mm (Ø x D) |
| Finish. | Polypropylene resin, off-white (RAL 9010 or equivalent) |
| Accessory (included) | Paper pattern x 1 |
Related product
TOA

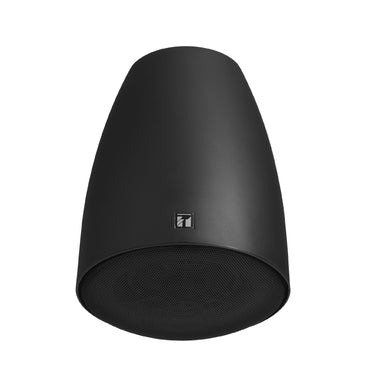

TOA Pendant Speaker PE-304BU 30W
Stylish design inspired by modern lighting fixtures Ideally suited for BGM & announcements 8 Ω and 25 V/70 V/100 V operation Input impedance is easily changed with a rotary switch on the top o...
TOA
The PE-64 is a pendant speaker designed for ceiling suspension installations. Considered in architectural design, it can blend in with lighting equipment. A directly-attached 5 m (16.4 ft) cable al...

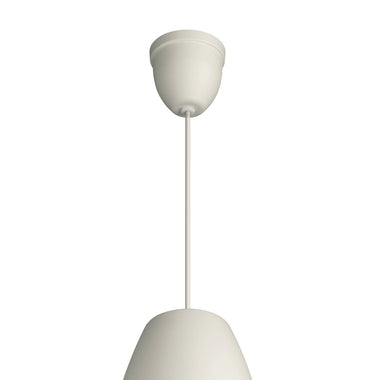

TOA
