ELOCK EL-830P 3/8" Press Fit Door contact

Press Fit Door contact Product Features EL-830P 3/8" Press Fit Door Contacts offers with high quality door contact with high grade magnet and designed in miniature size which ea...

Barcode:

Weight:

Tags: Door Contact, Magnetic Contact

Collections: Access Control, All Products, ELOCK

Notify me

Enter your email and we will inform you when the goods appear in stock

Terms Of Service Return policy
Description Delivery Product reviews

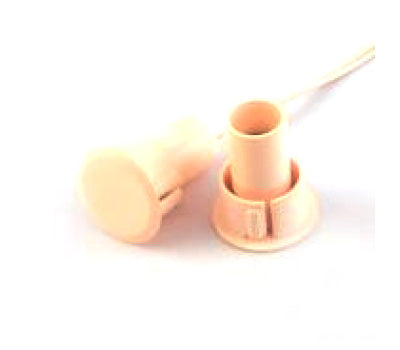

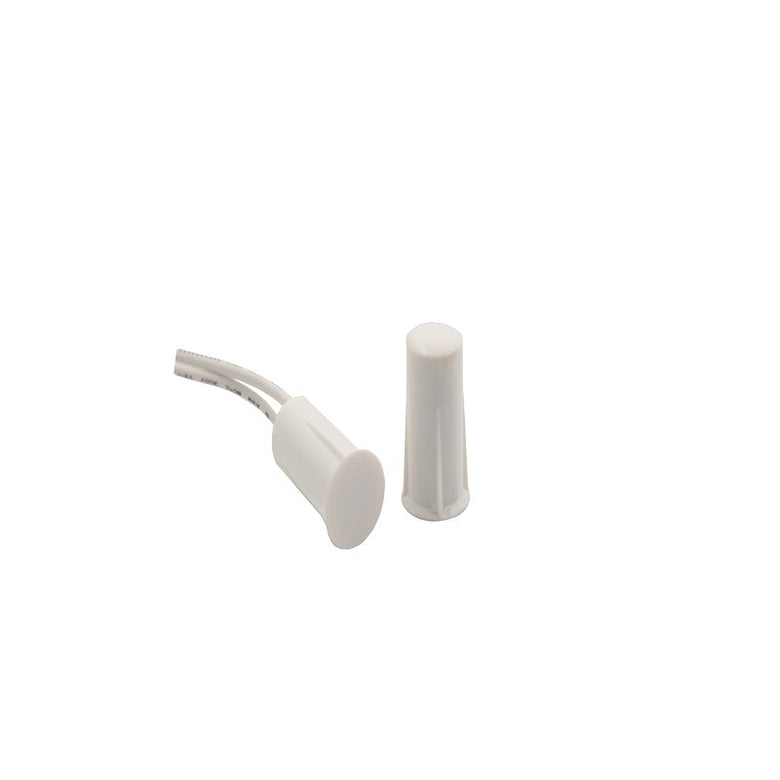

Press Fit Door contact

Product Features

EL-830P 3/8" Press Fit Door Contacts offers with high quality door contact with high grade magnet and designed in miniature size which ease for installation.

  • Designed specifically for wooden door installation with self-locking housing
  • 3/8" diameter press to fit
  • Ruthenium Over Gold Reeds

Technical Specification

  • #22AWG UL approved Lead wire
  • Maximum Contact Rating : 100VDC 0.5A 10W
  • Wide Gap up to : 3/4" ( 20 mm ) with Rare Earth Magnet designed for wooden door
  • Dimension (mm) : ( 19 L x 9.5 Dia ) mm
  • Safety approvals :- CE
  • Electrical Specification:
        - Voltage: 100 V AC/DC max.
        - Current: 0.5 A max.
        - Power: 10 W max.
