BOSCH LBB 1956/00 Plena Voice Alarm Call Station
BOSCH LBB 1956/00 Plena Voice Alarm Call Station
Regular price
115.000 KWD
Regular price
125.000 KWD
Sale price
115.000 KWD
Unit price
/
per

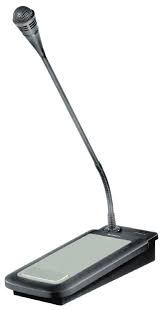

Plena Voice Alarm Call Station
Product Features
- Stylish six-zone call station for the Plena Voice Alarm System
- Six zone selection keys, all-call key and momentary PTT-key for calls
- Selectable gain, speech filter, limiter, and output level for improved intelligibility
- LED indications for zone selection, fault, and emergency state

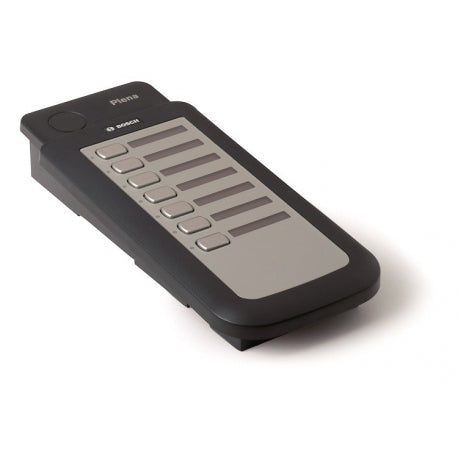

- Call station extension provides seven additional zone and zone group keys
Technical Specification
Power supply | |
Voltage range | 24 VDC supplied by LBB 1990/00 (or 18 to 24 VDC or VAC external power supply) |
Current consumption | <30 mA (plus <15 mA per keypad) |
Performance | |
Nominal sensitivity | 85 dB SPL (gain preset 0 dB) |
Nominal output level | 700 mV |
Maximum input sound level | 110 dB SPL |
Gain preset | +6 / 0 / -15 dB |
Limiter threshold | 2 V |
Compression ratio limiter | 1:20 |
Distortion | <0.6% (maximum input) |
Input noise level (equiv.) | 25 dB SPLA |
Frequency response | 100 Hz to 16 kHz |
Speech filter | -3dB @ 315 Hz, high-pass, 6 dB/oct |
Output impedance | 200 ohm |
