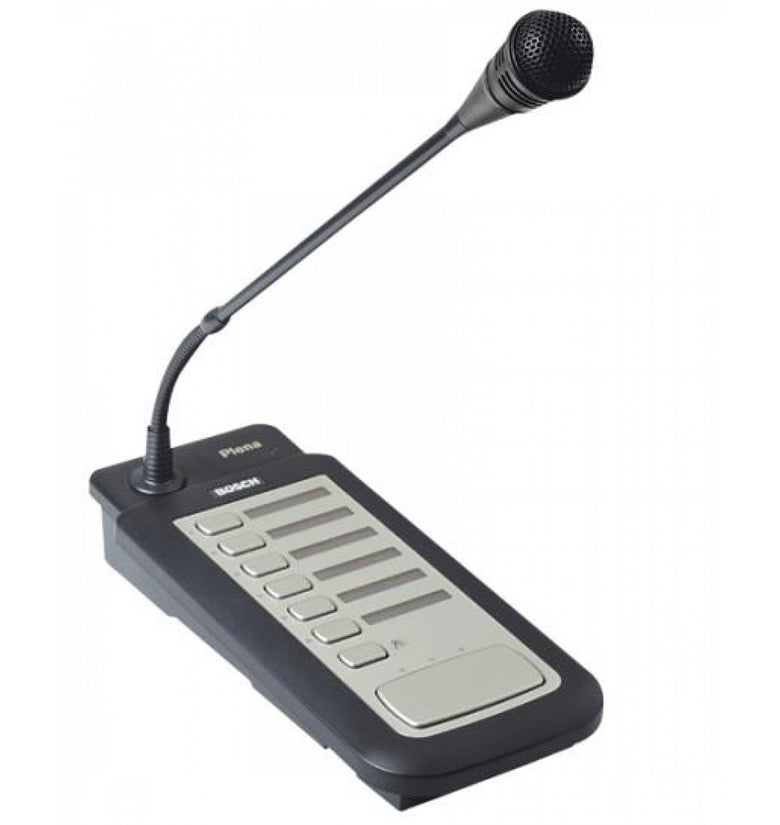

BOSCH Plena NA 6CS All-in-One Call Station

BOSCH Plena NA 6CS All-in-One Call Station

77.900 KWD
85.000 KWD 77.900 KWD
Sale Sold out

PLENA 6CS Call Station

Product Features
  • Stylish, high-quality six-zone Call Station for the Plena All-in-One System
  • Six-zone selection keys with LED indicators, and an ‘all-call’ key
  • Momentary Press To Talk (PTT) key
  • Configurable gain, speech filter, limiter, and output level for improved intelligibility
  • Configurable attention chime

Technical Specification

Power Supply
Voltage 24 Vdc (24 Vdc supplied by PLN‑6AIO240)
Current consumption <50 mA
Performance
Nominal acoustic sensitivity 85 dB SPL @ 1 kHz (gain preset 0 dB)
Nominal output level 1V
Input sound level (max.) 110 dB SPL
Gain preset
Limiter threshold 1 V
Compression ratio limiter 1:20
Distortion <2% (maximum input
Input noise level (equiv.) 25 dBA SPL
Frequency response 100 Hz to 14 kHz +/-6 dB
Speech filter -3dB @ 315 Hz, high-pass, 6 dB/oct
Output impedance 200 ohm
